Description

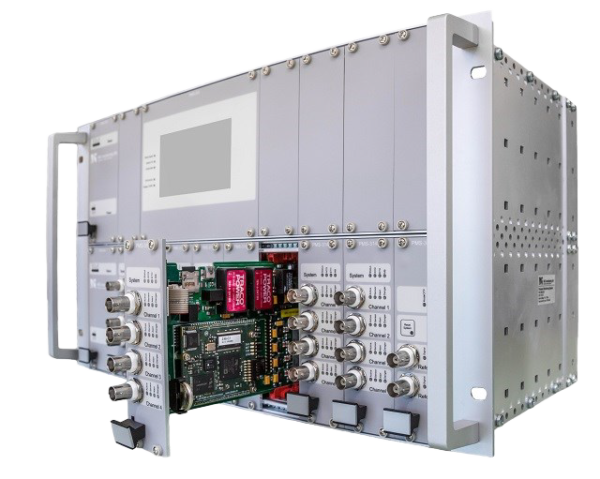

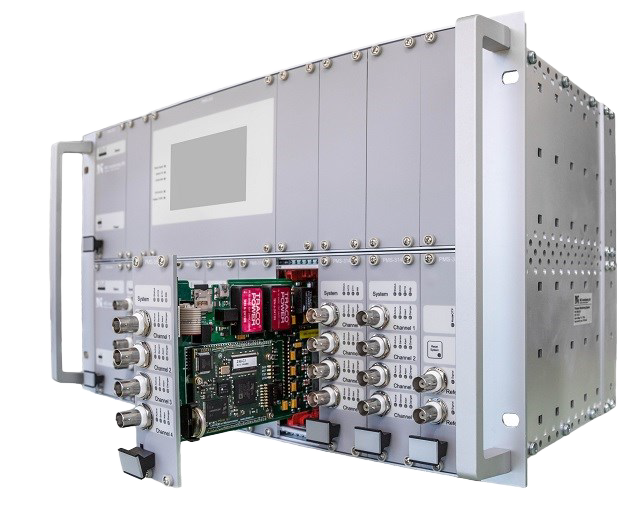

The PMS-300 Process Monitoring System is a modular 19” rack-based system designed for the protection and monitoring of rotating machines.
The 3HU version includes 1 available slot for the reference module card PMS-340 and 8 slots for the 4-channel processing module cards.
A 6HU version is available if additional channels and/or redundant power supply are required. BNC terminals are available on the front for external analysis.
The reference signal card acquires and distributes information to and from all modules that are activated on the
rack. This information includes: reference signals (2 channels), modeOTP selection and digital monitoring
parameters via modbus.
For each channel, the Processing Modules System PMS-314 provides analogue (4..20mA) and digital output (alarm, danger, sensor ok, system ok) based on calculated parameters and alarm settings.
An Ethernet interface is available for real-time configuration and communication to the central CMS-500 system.
Relay controllers PMS-330/PMS-331 allow configuration by logical combination and transferal of operating parameters to CMS-500 (via analogue inputs or modbus interface).
Key Features
• Modular 19” rack-based protection & monitoring system
• Up to 32 channels/3HU extendable to 64 channels/6HU
• 2-channels for reference signals
• Predefined acquisition modes
• Multiple sensor type input
• Individual Alert and Danger threshold settings
• Built-in interface (4..20mA, modbus RTU, relays, BNC,…)
• Up to 4x Third party MB slave for operating parameters
• Connection to CMS-500 software
Dimensions
3HU version
Rack 19‘‘(440) x 240 x 3HU(133.25)
(W x D x H) [mm]
6HU version
Rack 19‘‘(440) x 240 x 6HU(266.7)
(W x D x H) [mm]
