Description

MMS-Falcon is a compact, high-performance condition monitoring and analysis system. This system is composed of several acquisition and communication modules thus providing a distributed architecture.

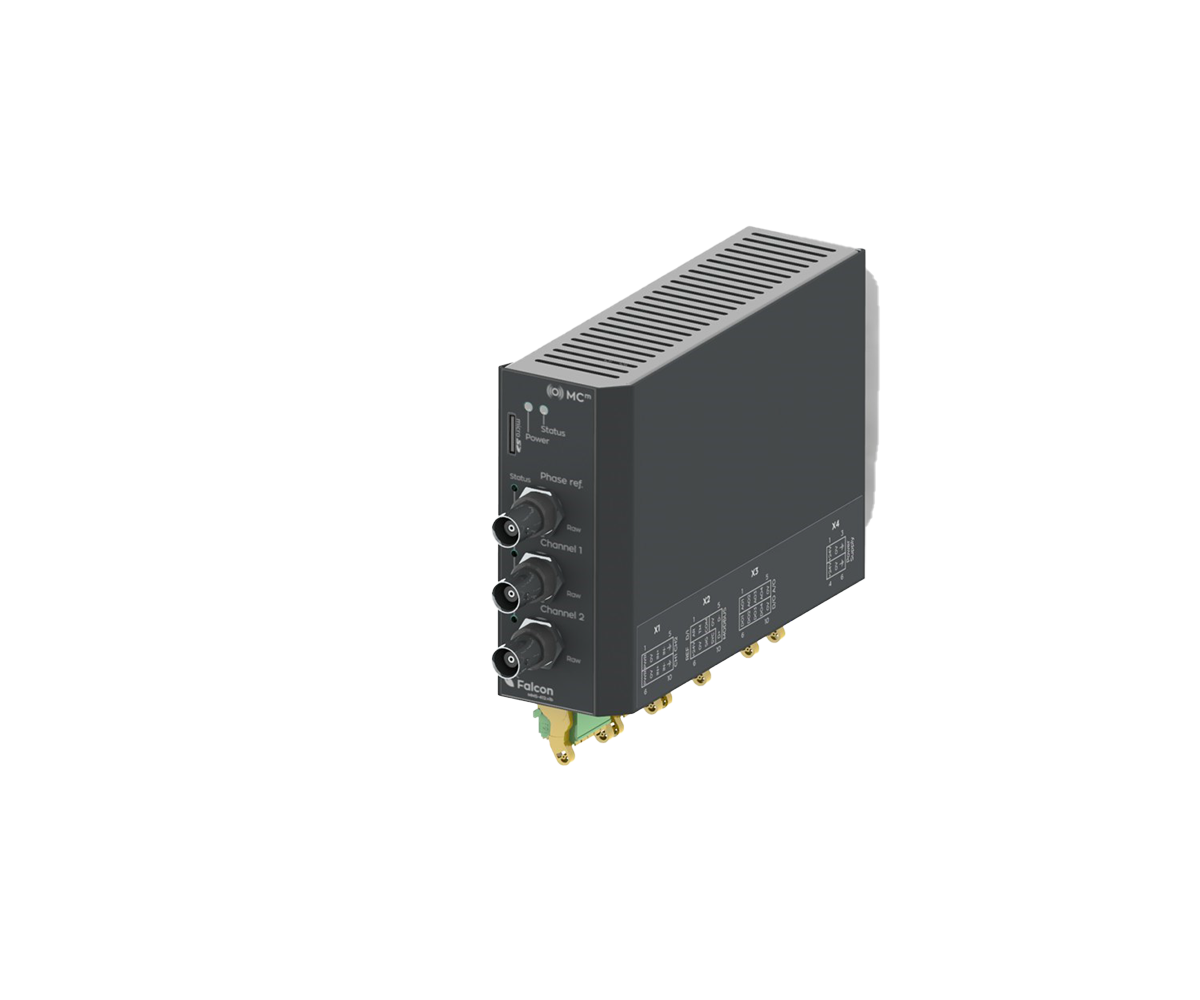

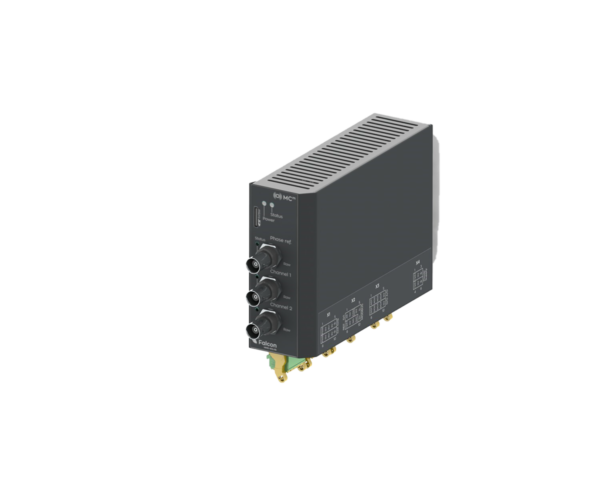

The MMS-412 is a key element of MMS-Falcon system and is designed to perform on-line continuous monitoring and protection of rotating machinery.
MMS-412 is a robust, compact and self-contained dual channel processing module. This module is designed to perform the absolute bearing and relative shaft vibration, roller bearing and endwinding monitoring.

One channel for phase reference is also available for harmonic extraction and rotation speed calculation. The module can be easily interfaced to the plant automation system using analogue outputs both current loop 4..20mA and digital output.

Key Features

• Combined protection and monitoring capabilities
• Robust, compact, self-contained
• 2 dynamic channels and 1 phase reference
• Standalone operating modes
• Synchronous and asynchronous acquisition modes
• Built-in analogue and digital output interfaces
• Modbus RTU fieldbus interface
• Software configurable
• Embedded microSD card to record configuration and data
• Raw buffered outputs on BNC
• Embedded sensor power supply
• Compatible with a wide range of sensors
